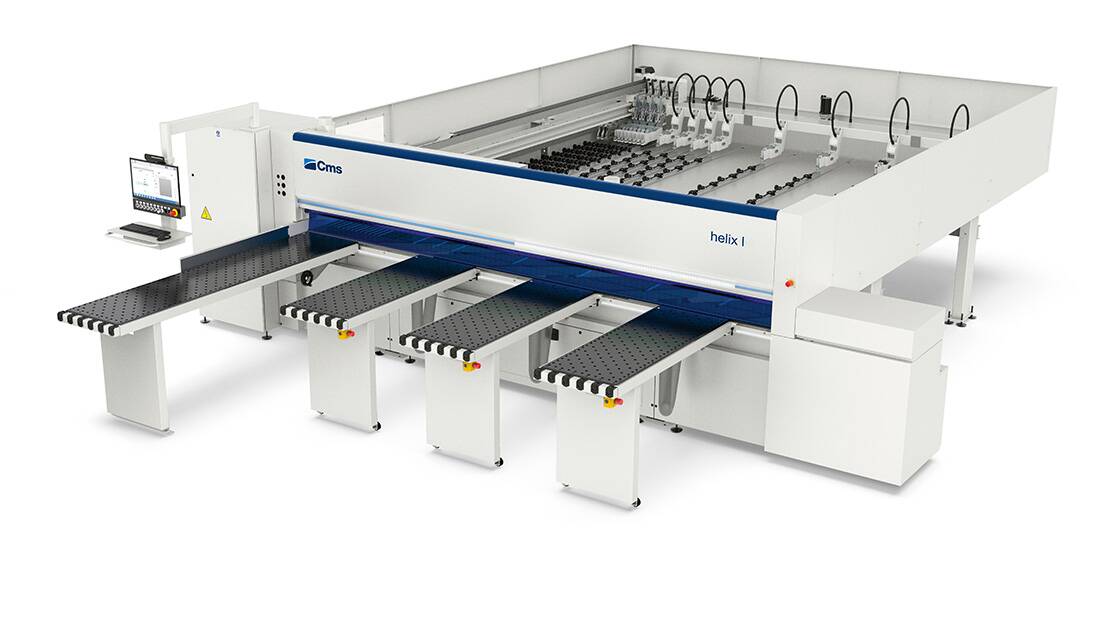

Cms helix L is the ideal solution for small-sized companies. Equipped with a single-blade beam saw controlled by PC/PLC control system, designed to cut advanced materials and plastic sheets.
It is equipped with:
- Prismatic guide on the pressure beam ensures a fast and uniform cycle and a long service life;
- Front LED bar: assisted management of the processing on the machine front;
- New blade carriage for easy inspection and maintenance. With maximum power up to 18 kW;
- Toothed belt: transmits maximum power with low levels of vibration and abrasion.
INCOMPARABLE PERFORMANCE/PRICE RATIO
Single-blade beam saw managed by PC/PLC control dedicated to cutting plastic sheets; high performance, essential and flexible, with advanced technical solutions and an incomparable performance/price ratio. Average 3% reduction on purchasing price calculated on cutting phase, compared with the standard saws on the market
FLEXIBILITY AND PERFORMANCE FOR EVERY NEED
Ideal for small companies or as an auxiliary machine for other plastic material processing technologies.
EASILY INTEGRATED WITH AN AUTOMATIC MAGAZINE
The beam saw can be easily integrated with an automatic horizontal magazine of plastic sheets (available on request)
| Technical Data | Helix L 60 | Helix L 80 | Helix L 95 | |
| Cutting length | mm | 3300 / 3800 / 4300 | ||
| Blade projection | mm | 60 | 80 | 95 |
| Saw carriage variable speed (option) | m/min (option) | 6 – 60 (0 - 120) | ||
| Pusher variable speed (option) | m/min (option) | 60 (70) | ||
| Main blade motor power (S6-40%) 50 Hz (stardelta-start) (option) |
kW (option) | 7,5 (9) (11) | ||
| Motor power with inverter (option) | kW (option) | (9) (11) | (9) (11) (15) | (9) (11) (15) (18) |
| Scoring unit blade motor 50 Hz | kW | 1,5 | ||
| Maine blade rotating speed – 50 Hz | g/min | 4650 | ||
| Scorer rotating speed – 50 Hz | g/min | 5850 | ||
| Main blade diameter | mm | 370 | ||
| Scorer blade diameter | mm | 200 | ||
| Number of clamps | std | 5 | ||
