antares mk3
(512) 931-1962
Interpolated 5-axis machining centers with monobloc structure for advanced materials processing

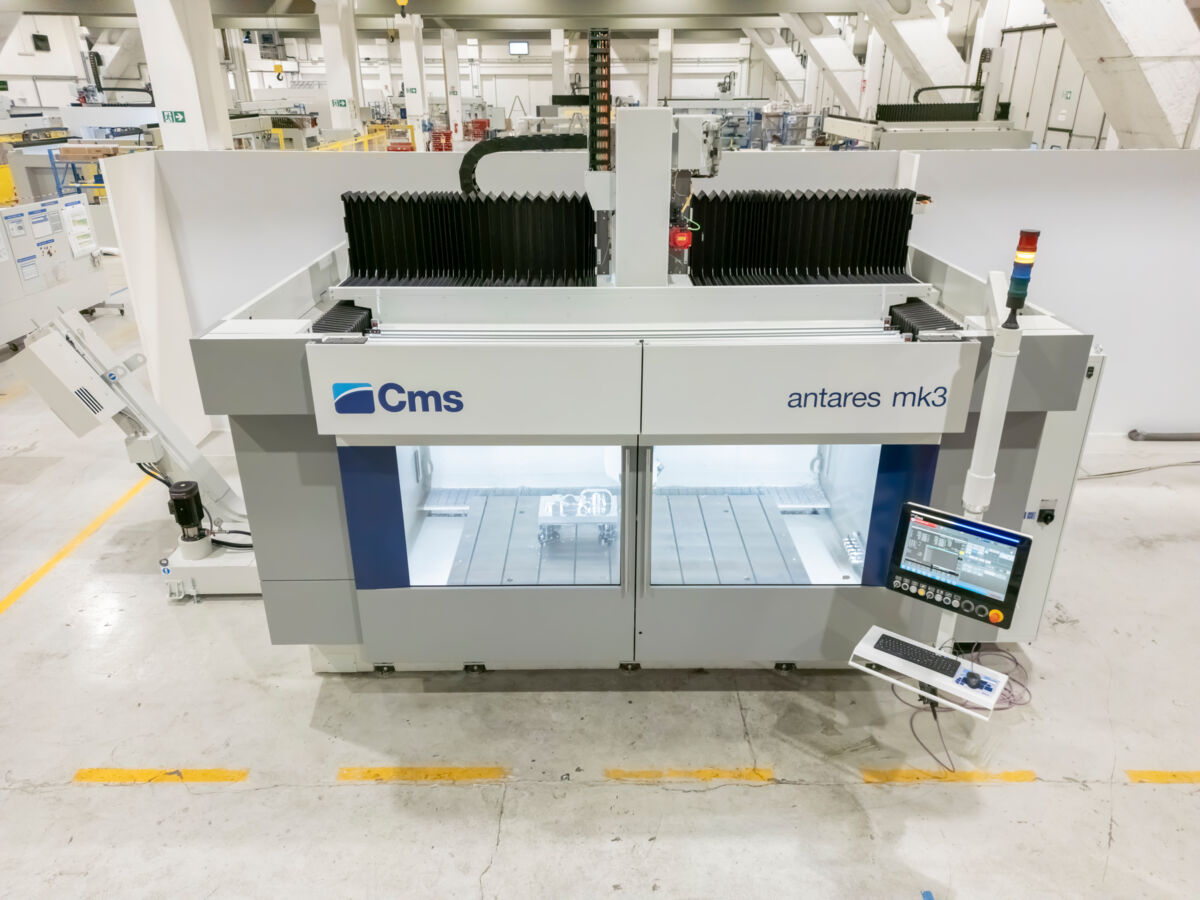

Monobloc machining center for vertical milling, ideal for composite materials, aluminum, light alloys and metals processing. The advanced design of its structures, which is the result of continuous investment in research and development by CMS, and the sophisticated technological solutions adopted ensure rigidity, long-term precision and exceptional motion dynamics. These features ensure exceptional finishing levels and unparalleled accuracy.
Its small size means it can be integrated into any production environment, while ensuring high production volumes. The machine design offers better accessibility to the work area for loading and unloading workpieces, including with automated systems.
Advantages
-
MORE COMPACT: Esigned to ensure maximum performance in small production areas. The machine can be transported fully assembled, resulting in lower delivery and installation times.
-

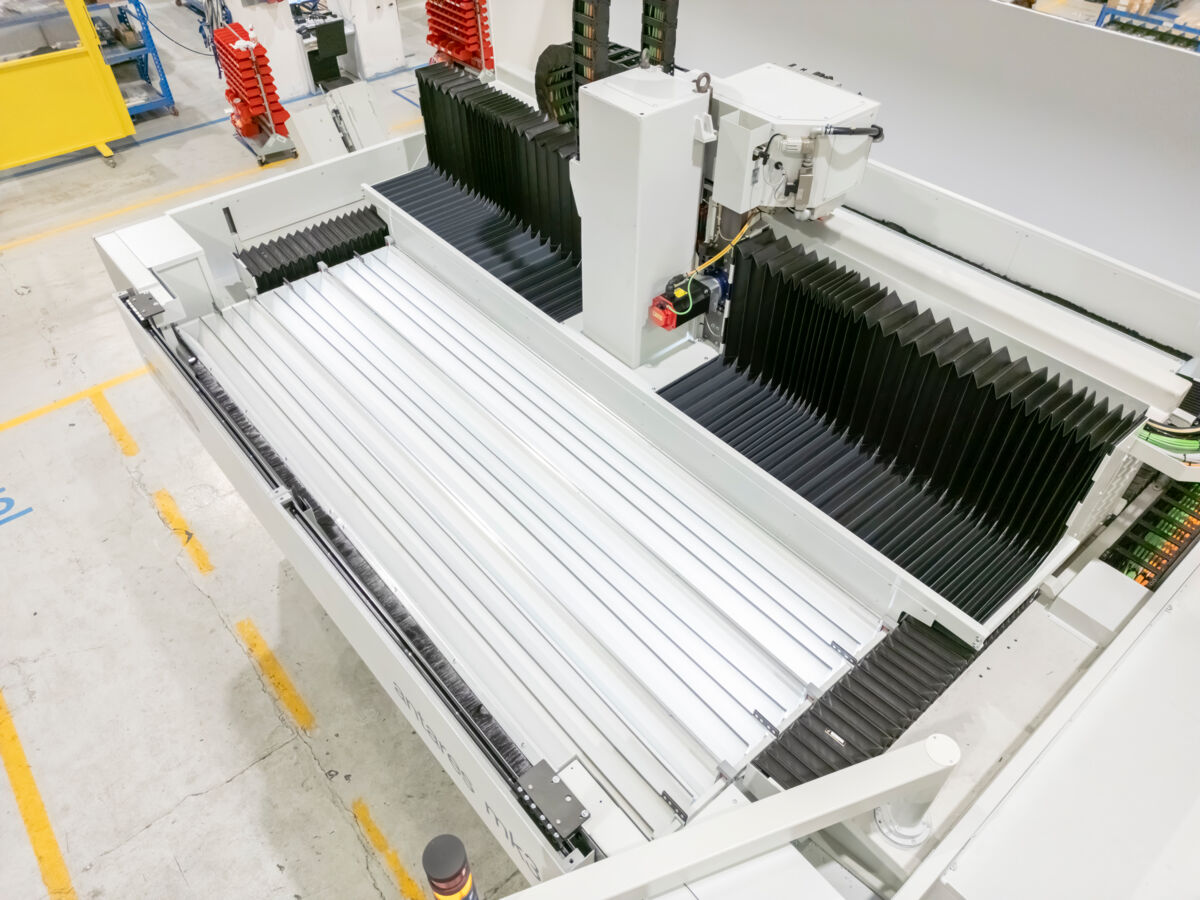

QUIETER: Roof bellows or full cabinet to contain dust, liquid and noise generated during fabrication.
-

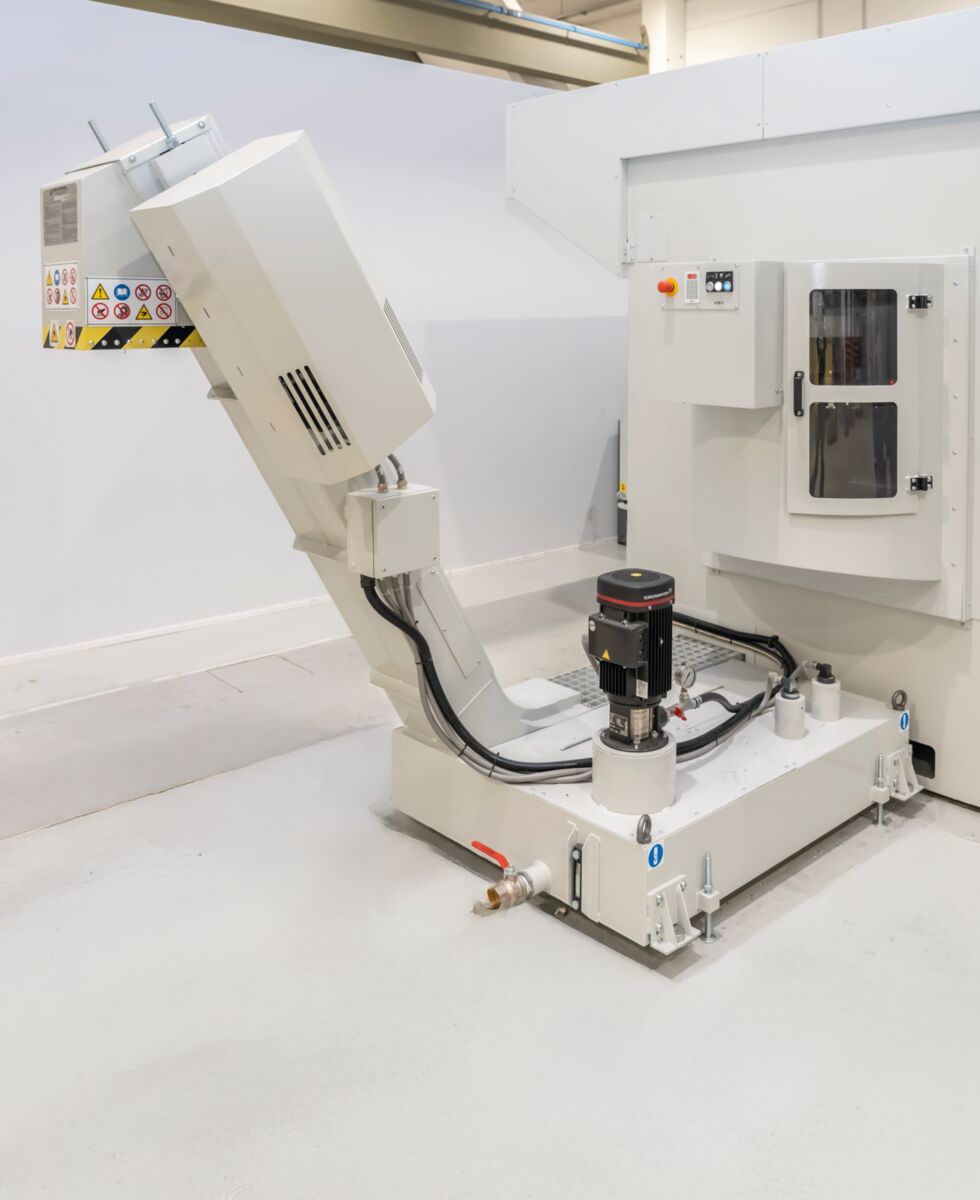

CHIP REMOVAL: system that ensures complete extraction of chip from the machine.
Technical data
| ANTARES MK3: WORKING UNITS AND ELECTROSPINDLES | |||
| PX5/HX5 - 12_24 | PX5/HX5 - 15_24 | PX5/HX5 - 20_24 (sincronous) | |
| B, C STROKES | B=+\- 120°, C=+\- 270° | ||
| RAPID B, C | 9000°/min | ||
| NOMINAL POWER (S1) | 12 kW | 15 kW | 20 kW |
| MAX POWER | 14 kW | 17 kW | 22,3 kW |
| MAX RPM | 24.000 rpm | 24.000 rpm | 24.000 rpm |
| MAX TORQUE | 11,1 Nm | 13,8 Nm | 20,1 Nm |
| TOOL CHANGER | MANUAL AND AUTOMATIC | ||
| TOOL HOLDER | HSK 63 F | HSK 63 F | HSK 63 A |
| COOLING | LIQUID | ||
| ANTARES MK3: WORKING PLANS | |
| MODEL | DIMESIONS X (mm) |
| ANTARES MK3 26/17 | 2500x1700 |
| ANTARES MK3 26/28 | 2500x2800 |
| ANTARES MK3 TR | (1900x1100) x 2 |
