“All in one” machining center
“All in one” machining center, 3 and 5 axes for the processing of plastic materials and advanced materials, equipped with technical solutions especially dedicated to the technical article and the low-drawing thermoformed products.
- wide workpiece passage in Z up to 250mm
- best-in-class range of spindles for all machining needs up to 15kw and 24.000 rpm
- incomparable optimization of encumbrance thanks to the available “pro-speed” and “pro-space” solutions
Advantages
-
PERFECT CUTTING PERFORMANCE FOR ADVANCED MATERIALS ANDPLASTIC

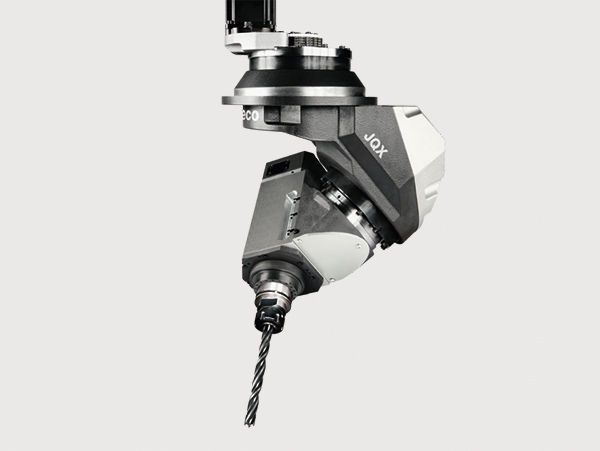

Exceptional finishing quality with the JQX(Just QualityeXtreme) 5-axis electrospindle with direct-drive transmission and up to 12 kW of power; it ensures absolutely no vibration even when removing large amounts of material at high speeds.
-
EVERY SECOND COUNTS

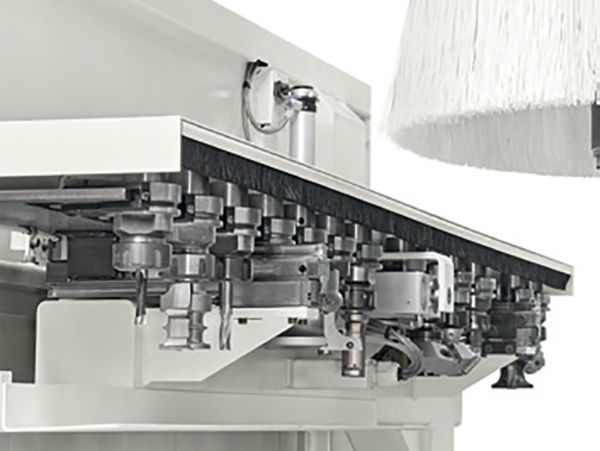

Working cycles on average 9% faster with the 14-station FAST rack magazine inside the mobile cabin. The tools are always available in front of the operating unit for change cycles in less than 15 seconds.
-
MAXIMUM FLEXIBILITY
With the multifunction worktable made of extremely rigid extruded aluminum, specially designed to remain perfectly flat over time, even under repeated stress. Ideal for sheet nesting processes.
-

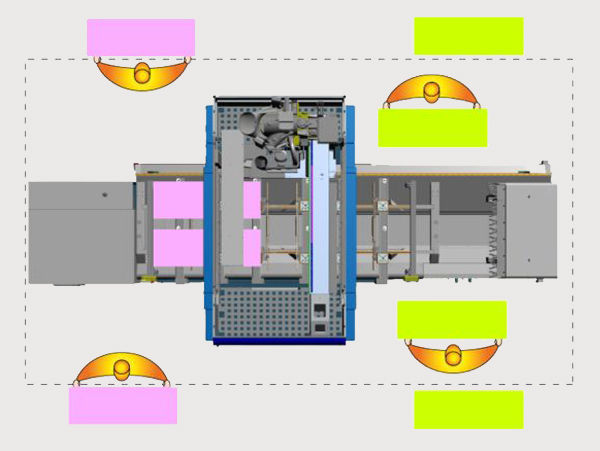

MINIMUM ENCUMBRANCE AND ACCESS TO THE WORK TABLE FROM ALL SIDES OF THE MACHINE
Thanks to the “pro-space” protections the loading area is absolutely unobstructed in order to minimize the space occupied.
The absence of perimeter protections allows access to the worktable from all sides of the machining centre with an average saving of 15% of occupied room in the workshop.
Technical data
| TRACER 100 | ||
| 10 | ||
| Axes | ||
| Vectorial speed X-Y axes “PRO-SPACE” version* | m/min | 56 |
| Vectorial speed X-Y axes “PRO-SPEED” version** | m/min | 78 |
| Z axis panel passage | mm | 180 (250 opz) |
| Routing unit | ||
| Motor power (max.) | kW (hp) | 15 (20,5) |
| Rotation speed (max.) | rpm | 24000 |
| Available tools on tool changer (up to) | places | 57 |
| Drilling unit | ||
| independent vertical spindles (up to) | n. | 21 |
| Independent horizontal spindles (up to) | n. | 12 |
| Rotation speed (max.) | rpm | 8000 |
| Integrated blade in X, diameter | mm | 125 |
| INSTALLATION | ||
| Exhaust air consumption | m3/h | 4430 |
| Exhaust air speed | m/sec | 25 |
| Exhaust outlet diameter | mm | 250 |
*with high dynamic equipment: 84 m/mm
**with high dynamic equipment: 113 m/mm
