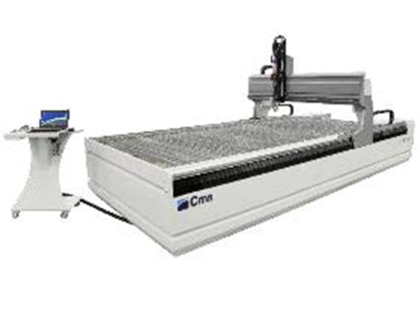

3- and 5-axis water jet cutting system
Tecnocut Smartline is designed to redefine industry standards of excellence by improving operating efficiency, while maintaning CMS’ renowned reputation for unparalleled construction and working quality. It includes all the safety and performance features typical of CMS Waterjet machines, in a brand new, innovative, and compact design.
• The open frame structure with electric gantry and linear guides integrated in a sturdy tank allows an easy access to the worktable. Loading and removing material is quick and easy.
• All axes’ motions are carried out through hardened and ground rack and pinion.
• The thermowelded bellows provide complete protection of the guides and the rack of x-axis from water and dust. On Y-axis, instead, the protection is guaranteed by a set of sheet metal panels.
• The steel structure undergoes an anti-rust treatment through sandblasting and ceramic painting, which results in a higher resistance against corrosion.
• The tank is set up for the installation of a chain system for the exhausted removal.
Advantages
-
EASY LOADING /UNLOADING: SMART OPERATIONS

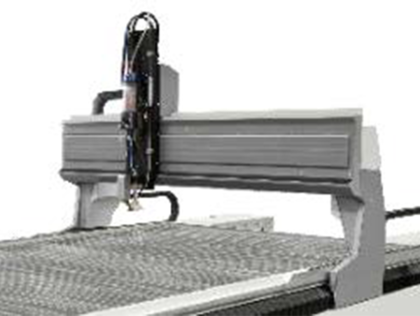

Excellent access to the cutting area: easy access on 3 sides to load and unload the material.
-
91% LESS OPERATIVE COSTS: SMART MAINTENANCE

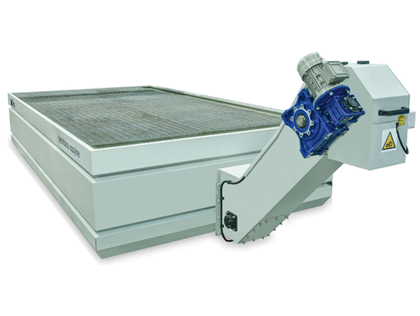

The catch tank with special anti rust ceramic painting is designed to fit the new Evo 4 chain dredge for exhausted abrasive removal even later after installation with 91% less maintenance costs.
-
HIGH PERFORMANCE: SMART PRODUCTIVITY
Rapid speed up to 50 m/ min and acceleration up to 3 m/s 2 top notch performance in the category to get maximum productivity with 3 and 5 axis configuration.
-

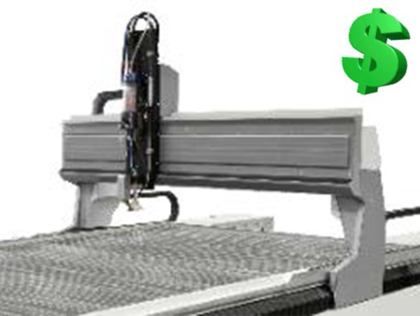

BEST PRICE/PERFORMANCE: SMART INVESTMENT
High price/performance ratio for a cutting solution configurable to satisfy every application needs based on customer s investment plan.
Technical data
| MODEL | 1313 | 2030 | 2040 | 2060 |
| X AXIS | 1300 mm / 51 in | 3000 mm / 118 in | 4000 mm / 157 in | 6000 mm / 236 in |
| Y AXIS | 1300 mm / 51 in | 2000 mm / 79 in | 2000 mm / 79 in | 2000 mm / 79 in |
| Z AXIS | 250 mm / 9.8 in (150 mm / 5.9 in with 5-axis head) |
250 mm / 9.8 in (150 mm / 5.9 in with 5-axis head) |
250 mm / 9.8 in (150 mm / 5.9 in with 5-axis head) |
250 mm / 9.8 in (150 mm / 5.9 in with 5-axis head) |
| C AXIS | Infinite | Infinite | Infinite | Infinite |
| B AXIS | ± 60° | ± 60° | ± 60° | ± 60° |
| BED SIZE | 2444 x 1380 mm / 96 x 54 in | 3330 x 2080 mm / 131 x 82 in | 4150 x 2080 mm / 163 x 82 in | 6610 x 2080 mm / 260 x 82 in |
| OVERALL DIMENSIONS WITH LIGHT BARRIERS | 2287 x 3490 mm / 90x137 in (with cabin) | 4560 x 6140 mm / 179 x 241 in | 4560 x 7190 mm / 179 x 283 in | 4560 x 10050 mm / 179 x 395 in |
