tecnocut waterspeedy s
(512) 931-1962
Complete Waterjet Cutting Systems
Tecnocut Waterspeedy S is a system suitable for soft materials cutting as plastic, foams, rubbers, composites, multilayer materials, gaskets and technical materials. Its extremely high dynamic, together with the possibility to work with several cutting heads and its automatic pallet change system, assures very high productivity and competitive costs when compared to conventional systems. Tecnocut Waterspeedy S is the result of a careful design for the satisfaction of customer’s requirements and it tends to reach the highest safety standards.
Advantages
-
NO ONE SO FAST IN THE WATER-JET CUT

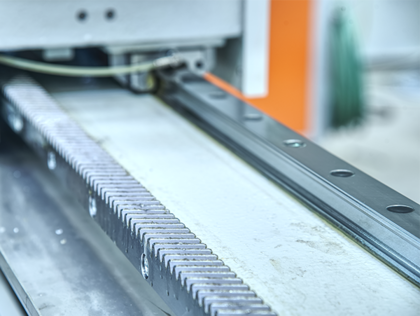

Helical rack and pinions for unparallel performance with rapid speed up to 70 m/min and aceeleration up to 7 m/s2.
-
UP TO 85% MORE PRODUCTIVITY

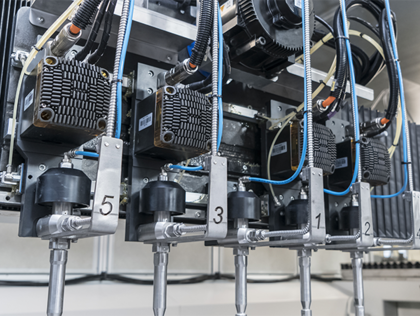

Cutting configuration from 3 up to 7 3-axes water jet heads with automatic distance controlled by CN, to cover high productivity requirements of nesting on foams and soft material in general.
-
CUTTING AREA PROTECTION FOR A CLEAN AND QUIET ENVIRONMENT

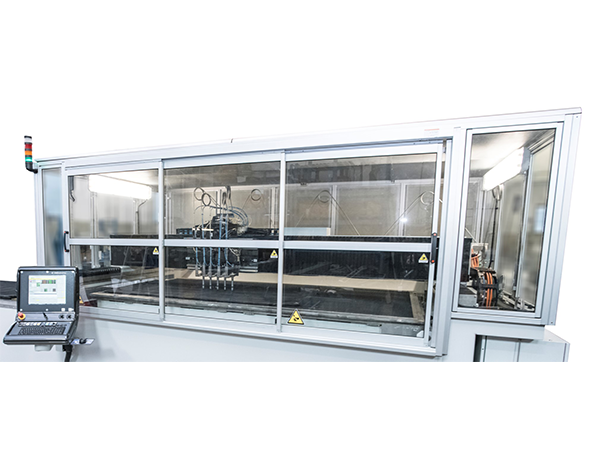

Soundproof cabin for cutting area protection, to prevent any contact with moving parts and dust and moisture leakage during cutting.
-
NO-STOP CUT: ELIMINATION OF DEAD TIMES FOR LOADING AND UNLOADING

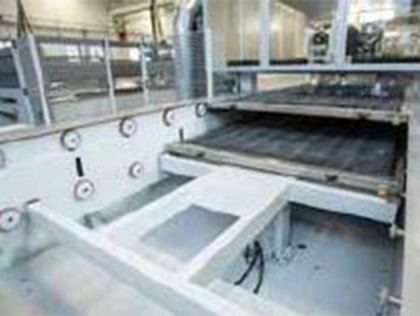

Separate loading and unloading zones with automatic servomotor driven pallet shuttle to eliminate dead times for loading and unloading. Both pallets are made with a stainless steel honeycomb worktop.
Technical data
| MODEL | 1630 |
| X Axis | 3000 mm / 117 in |
| Y Axis | 1600 mm / 63 in |
| Z Axis | 200 mm / 7,9 in |
| Worktable | 1630x3080 mm / 64.17x21.26 in |
| Overall dimensions | 10150x4910x2800 mm / 399.6x193.3x98.43 in |
• Support plane max capacity: 150 kg/mq
• Max speed: 2755.9 ipm
• PC panel with 21” LCD monitor, keyboard, mouse and manual control device
• External port for USB key interface
• Connection to the computer network: RJ45 10/100 Mb connector
