brembana maxima
(512) 931-1962
5/6 interpolated axes CNC machining center
CMS brembana maxima is the new generation of 5-axis CNC machining center. It’s ideal solution for stone fabrication workshops looking to invest in a machining center able to perform from cutting to routing to sculpturing.
Superior mechanical structure, removable cutting surface, automatic tool change, the most advanced software, awesome design: Go all-in-one with brembana maxima!
• A rational and essential open frame construction for maximum accessibility and integration in automated production lines
• Built for durability and productivity, without sacrificing precision in any job
• Automatic tool change ISO 40
• The most updated version of on-board software to make any operator feel at ease and in control of the machine.
Advantages
-
POWER AT THE TOP OF THE CATEGORY

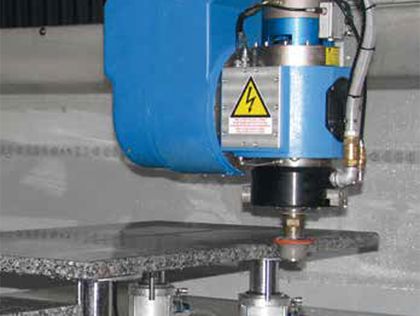

The electrospindle is CMS technology, liquid-cooled and with power up to 30 kW, which guarantees ideal operating conditions and up to 21% savings on cycle times.
-
UNRIVALLED MECHANICS

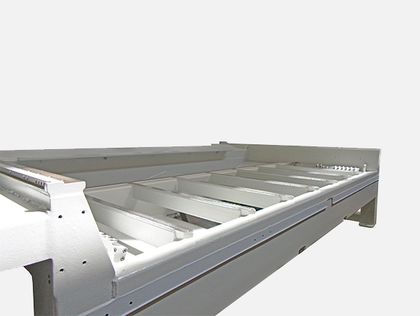

The sturdy structure of the machining centre ensures the optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance. -
+43% STIFFNESS ON ROTARY AXES

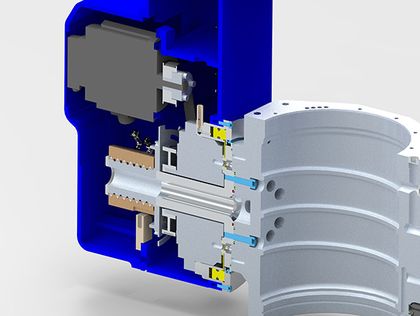

Pneumatic brakes on B and C axes guarantee maximum stiffness to achieve superior performance and quality. -
QUALITY WITHOUT COMPROMISE

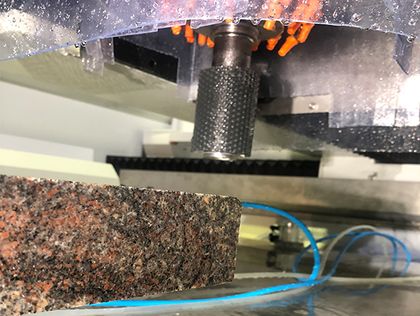

Tool wear control system, which enables the automatic adjustment of the tool position, ensuring top quality finishing.
Technical data
| X Axes stroke | 4250 mm | |
| Y Axes stroke | 2550 ÷ 8500 mm | |
| Z Axes stoke | 900 - 1400 mm | |
| Rotating axis | B +0° / -95° | |
| C ± 185° | ||
| No. Stations tool changer | 19 ÷ 55 + max 2 stations for blade diam. Max 725 mm | |
| Electrospindle | ||
| Power | 28 kw | |
| Revolution | 0 ÷ 12000 rpm | |
| Connection | ISO 40 | |
| Torque | 119 Nm 2200 rpm | |
| Electrical cabinet | Fixed on right shoulder | |
