Compact and easy to install, it doesn’t require any foundations, even as a possibile re-installation. This machine is built with the needs of workshops in mind and it is used for cutting slabs up to 200 mm thickness with blade Ø 625 mm of natural stone, synthetic stone, and ceramic. It features a powerful blade motor capable of 25HP and 125Nm of torque, +34% higher than previous generation.
The weight of the machine, up to 5.1 tons, ensure perfect rigidity for the production of kitchen countertops, vanity tops, wall panels for interiors and exteriors, flooring, street furniture, doorsteps, staircases, and thresholds.
KEY BUYER BENEFITS
UNRIVALLED MECHANICS

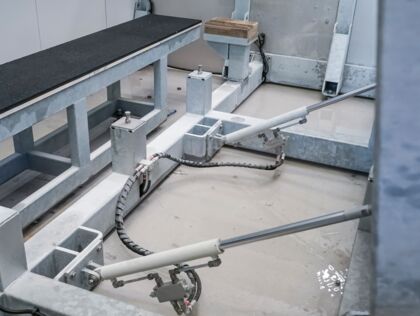

The weight of the machine up to 5.100 kg ensures the optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time. This machine base fixed directly to the ground, without the need of building work, increases the stability and performance.
MAXIMUM FREEDOM FOR YOUR PROJECTS

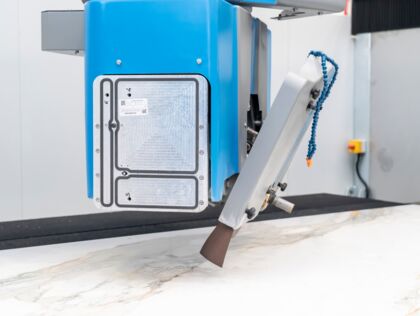

Rotary axes are fully interpolated with linear axes: the machine can therefore perform 5-axis machining with a tool and/or disc if necessary.
+33% PRODUCTIVITY WITHOUT MANUAL MOVEMENTS

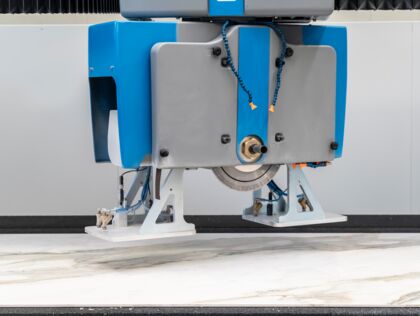

Thanks to the vacuum manipulator, it is possible to automatically move the cut pieces to optimize the slab cutting and reduce waste processing.
EASY PROGRAMMING
Simple and intuitive programming, thanks to the software installed on-board the machine.
| X AXIS STROKE | 3960 mm / 156 in |
| Y AXIS STROKE | 2450 mm / 97 in |
| Z AXIS STROKE | 16 mm |
| HEAD REVOLUTION (C AXIS) | ± 180° (360°) |
| HEAD INCLINATION (A AXIS) | 0 – 90° |
| X AXIS SPEED | 30 m/min |
| Y AXIS SPEED | 25 m/min |
| Z AXIS SPEED | 8 m/min |
| MINIMUM DISK DIAMETER | 350 mm / 14 in |
| MAXIMUM DISK DIAMETER | 625 mm / 25 in |
| MAXIMUM WORKING THICKNESS (WITH DISK Ø625 MM) MOTOR | 200 mm / 8 in |
| MOTOR | 18,5 kW / 25 HP |
| MOTOR REVOLUTION | 0 ÷ 6.000 rpm |
| WORKTABLE DIMENSIONS | 3600 x 2500 mm*/ 142x98 in* |
| WATER CONSUMPTION (3 BAR) | 40 l/min |
| AIR CONSUMPTION (6 BAR) | 17 l/min |
| OVERALL DIMENSIONS | 6650*x4300x3165 mm / 262*x169x125 in |
| OVERALL MACHINE WEIGHT | Up to 5.100 Kg / 11.240 lb |
*excluding space necessary for electrical cabinet access
