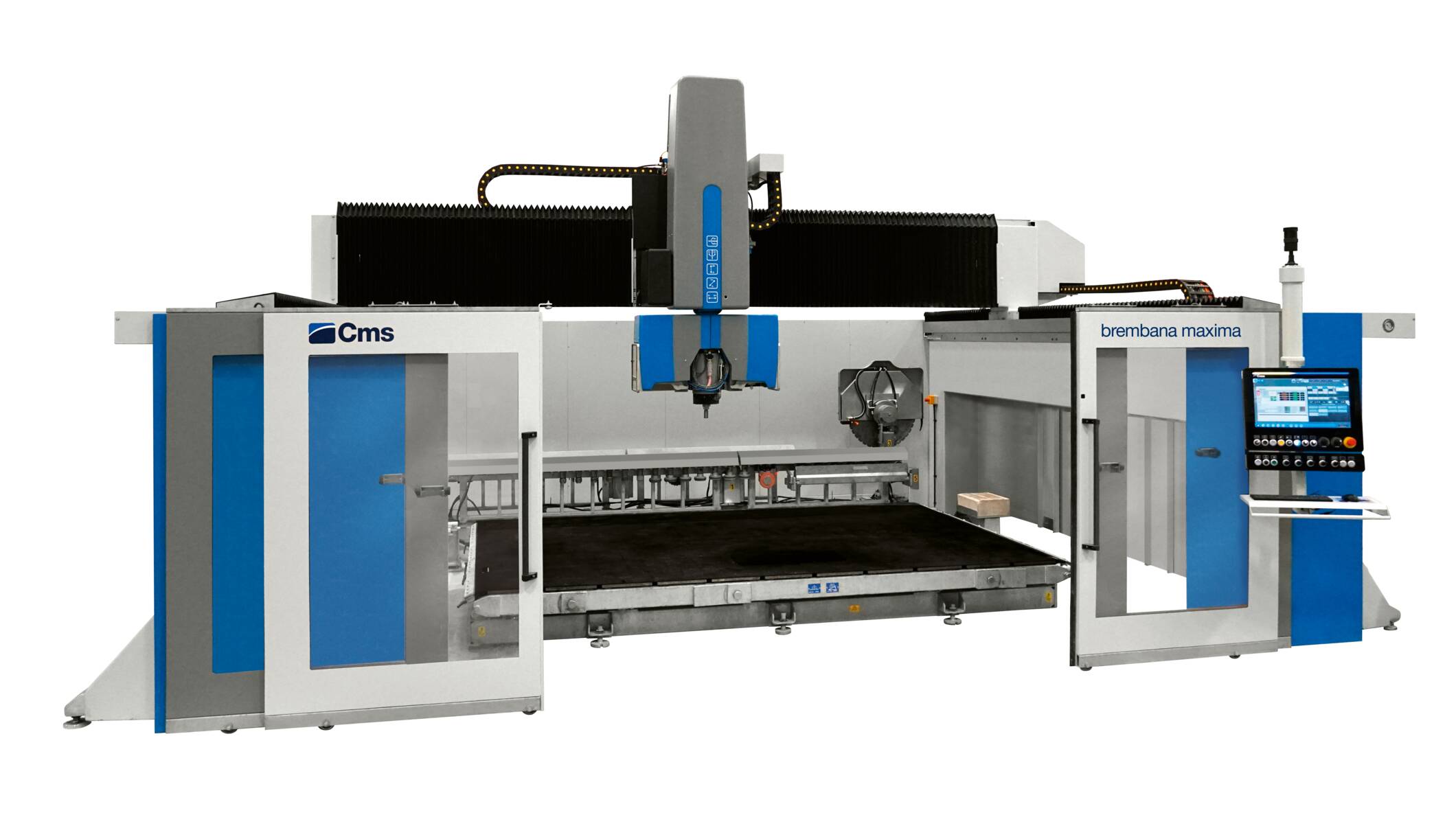

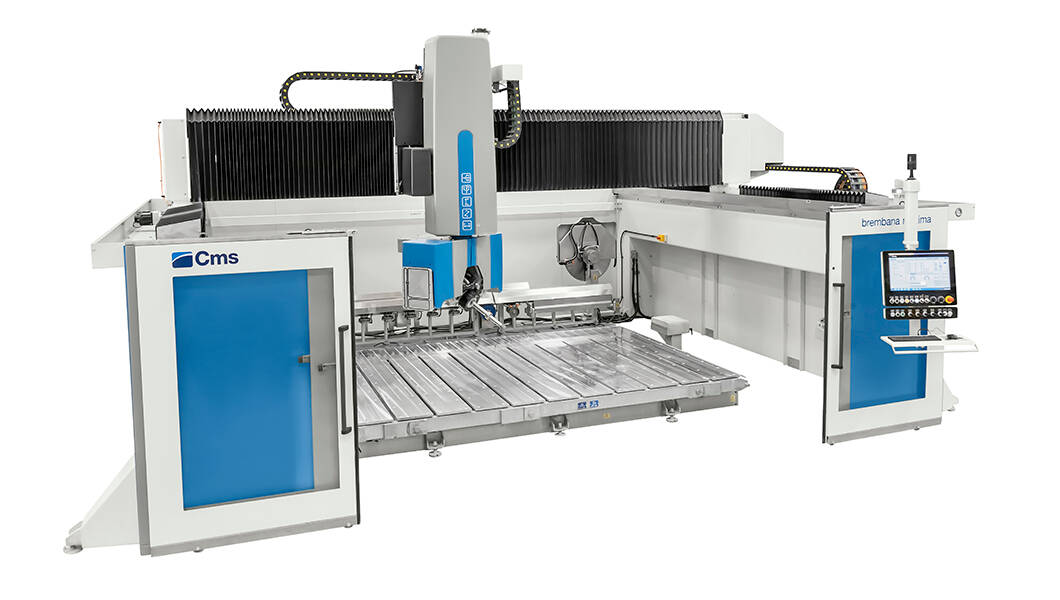

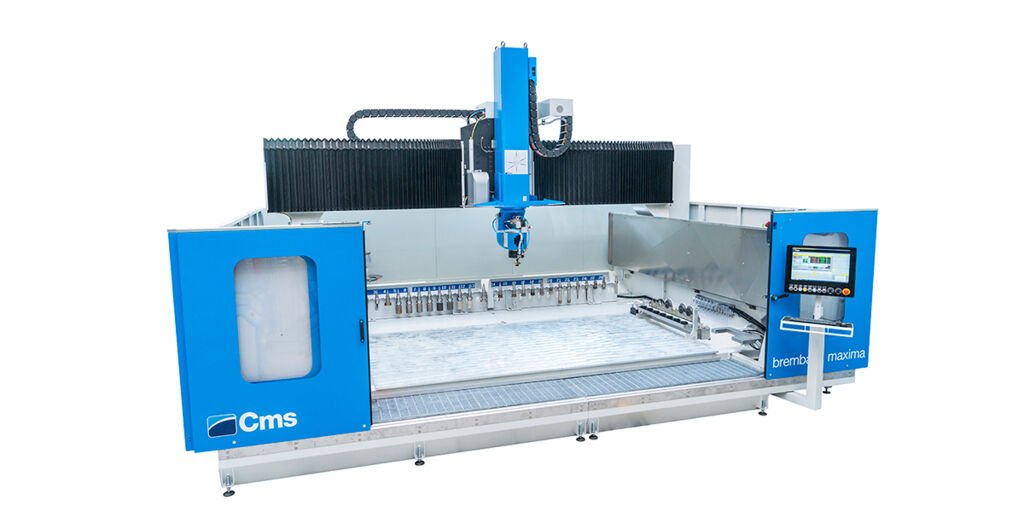

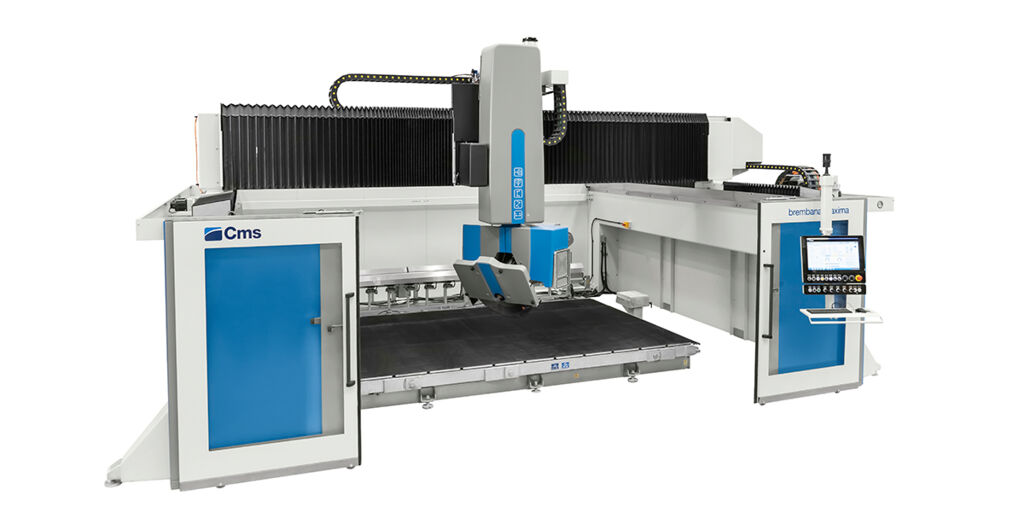

brembana maxima
(512) 931-1962
5/6 interpolated axes CNC machining center
CMS brembana maxima is the new generation of 5-axis CNC machining center. It’s ideal solution for stone fabrication workshops looking to invest in a machining center able to perform from cutting to routing to sculpturing.
Superior mechanical structure, removable cutting surface, automatic tool change, the most advanced software, awesome design: Go all-in-one with brembana maxima!
• A rational and essential open frame construction for maximum accessibility and integration in automated production lines
• Built for durability and productivity, without sacrificing precision in any job
• Automatic tool change ISO 40
• The most updated version of on-board software to make any operator feel at ease and in control of the machine.
Advantages
-
POWER AT THE TOP OF THE CATEGORY

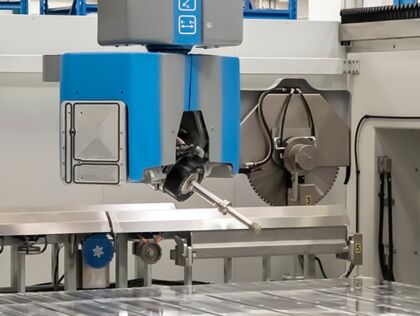

New Hiteco electrospindle with 37.5 Hp and 119 Nm, for heavy duty machinings from cutting to milling.
-

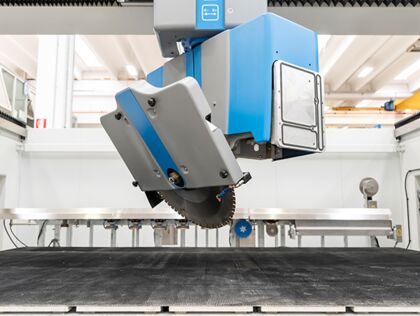

UNRIVALLED MECHANICS
The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time.
-
MAXIMUM FLEXIBILITY

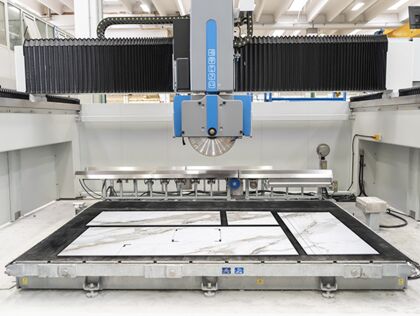

Ability to execute complete programs, from slabs to finished products, in a single machine footprint
-
QUALITY WITHOUT COMPROMISE
Automatic tool wear control system and cutting speed control system, to guarantee best productivity and top quality finishing
Technical data
| X Axes stroke | 4250 mm | |
| Y Axes stroke | 2550 ÷ 8500 mm | |
| Z Axes stoke | 900 - 1400 mm | |
| Rotating axis | B +0° / -95° | |
| C ± 185° | ||
| No. Stations tool changer | 19 ÷ 55 + max 2 stations for blade diam. Max 725 mm | |
| Electrospindle | ||
| Power | 28 kw | |
| Revolution | 0 ÷ 12000 rpm | |
| Connection | ISO 40 | |
| Torque | 119 Nm 2200 rpm | |
| Electrical cabinet | Fixed on right shoulder | |
