brembana kratos
(512) 931-1962
5-axis open frame bridge saw

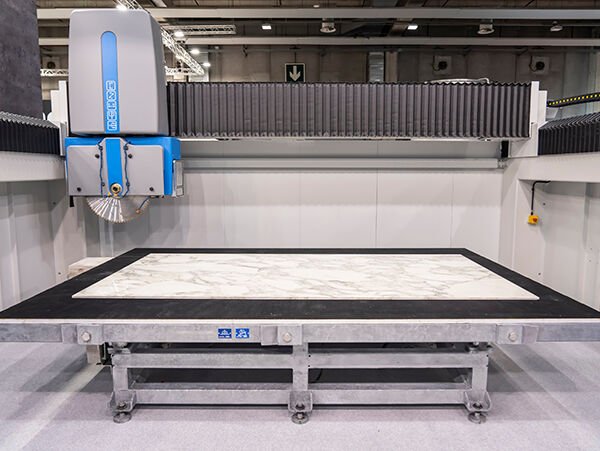

Brembana kratos is the new generation of 5-axis CNC bridge saw. Its robust, open-frame construction is designed to fit easily into both fabshops and automated production lines.
It is built for maximum strength and productivity, without compromising precision in any machining process: from cutting strips from hard stone blocks up to 250 mm thick, to cutting thin ceramic slabs to make kitchen worktops. The vacuum manipulator features a large gripping width and an increased suction surface divided into multiple zones. With a capacity of 500 kg, it can handle anything from long, narrow backsplashes up to jumbo slabs.
Brembana kratos can exploit three tools without operator intervention:

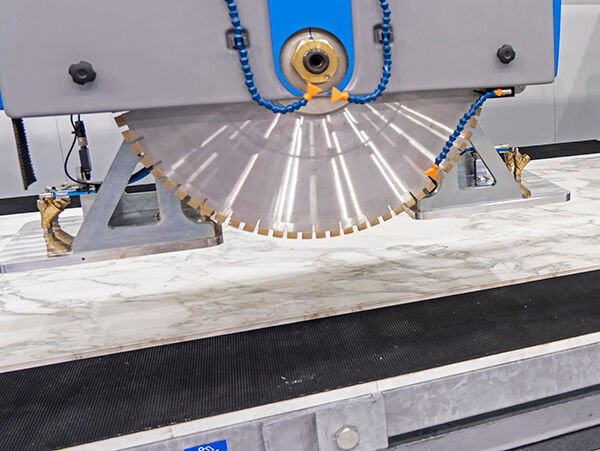

• Diamond disks from 300 mm to 725 mm in diameter.
• Drill bits and core drill bits (right-hand ½G thread) or polishing tools can be used up to 6,000 rpm.
• Cylindrical cutters and engraving bits (right-hand ½” G thread) can be used up to 14,000 rpm.
When equipped with the latest on-board software version, brembana kratos is able to meet the needs of every marble mason.
Advantages
-
+92% manipulator width compared to the competition, to improve handling of longer workpieces.
-
+16% work area compared to the competition: miteringover the entire slab, even of the “super jumbo” type
-

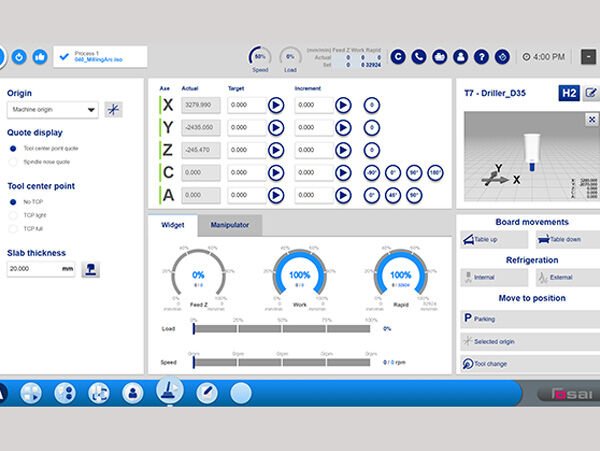

CMS ACTIVE BRIDGE SAWS: new comprehensive, user-friendly user interface and software integrated into the machine.
-

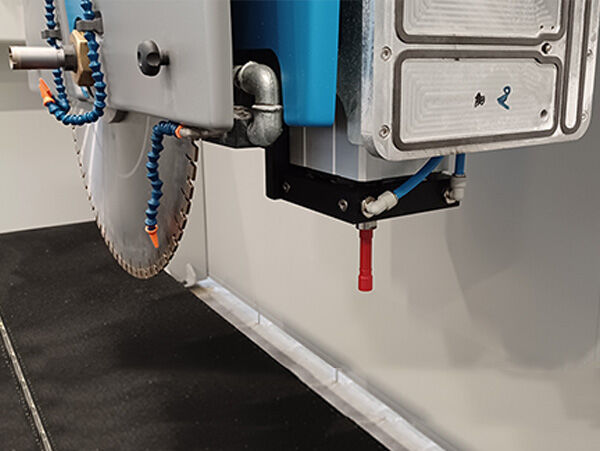

Disk motor + side electrospindle: 3 tools always available for maximum productivity
Technical data
| BLADE DISK DIAMETER | 300 ÷ 725 mm / 12÷28 in – with side spindle absent or disabled 300 ÷ 425 mm / 12÷17 in – with side spindle enabled |
| MAXIMUM WORKING THICKNESS WITH BLADE DISK | 250 mm / 9.8 in |
| BLADE MOTOR | 18,5kW – 25 HP |
| BLADE MOTOR REVOLUTION | 0 ÷ 6000 rpm |
| OPTIONAL SIDE ELECTROSPINDLE | 3.7kW – 6Nm, 14000rpm |
| TYPE OF TOOLS | ½ gas RIGHT connection |
| HEAD REVOLUTION (C AXIS) | ± 185° (370°) |
| HEAD INCLINATION (A AXIS) | 0° / +90° |
| X AXIS STROKE AND SPEED | 3900 mm / 152 in - 36 m/min |
| Y AXIS STROKE and speed | 2450 mm / 96 in - 36 m/min |
| Z AXIS STROKE and speed | 550 mm / 21.5 in - 8 m/min |
| WORKBENCH DIMENSIONS | 3800x2500 mm / 148x98 in |
| WORKBENCH CAPACITY | 3000kg static load, 2000kg tilting load |
| MINIMUM SPACE REQUIRED FOR INSTALLATION* | 7080mm x5310mm, H max 3300mm OVERALL MACHINE |
| OVERALL MACHINE WEIGHT | 7000kg |
