br5 special spa
(512) 931-1962
Ease of use and safety

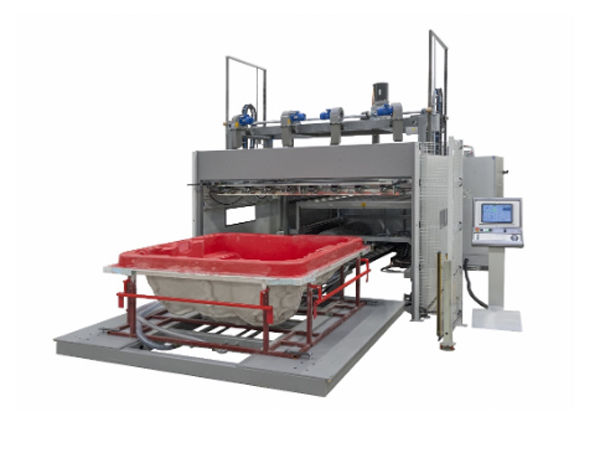

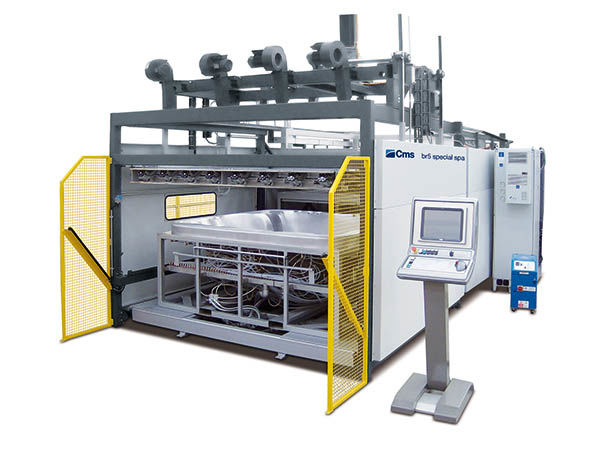

The br5 special spa series - manual or automatic sheet loading thermoforming machine - is designed for thermoforming of large parts that do not require sheet sag control.
- ease of use and safety.
- low-cost but full features
- dimensions of 2.500x2.500 mm up to 6.000x2.500 mm
Advantages
-
THERMOFORMING: CMS MADE IT EASIER!

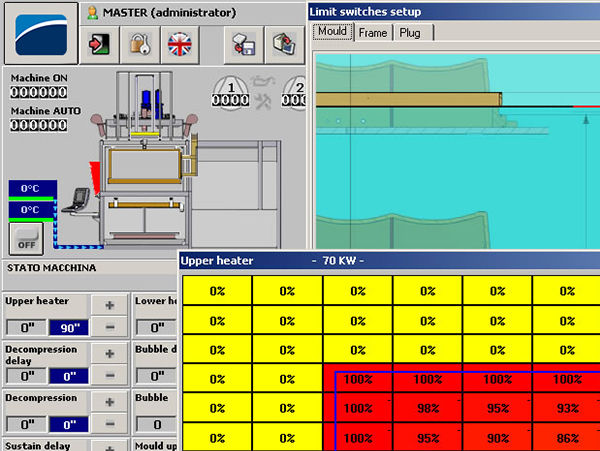

Simple management of all process parameters thanks to a userfriendly software specifically developed for thermoforming process.
It shortens by 53% learning times compared to different solutions using wizard procedures. All variables are saved in a single program ensuring the same results even after years.
-
A DEDICATED SOLUTION FOR YOU
Specific machine design for bathtubs and whirlpools with total mould extraction for easy access while loading sheets and unloading parts. Main proportional vacuum with a second line for borders forming.
-
DIMENSIONS THAT COUNTS
Modular design that allow to reach huge dimensions in X up to 12 meters. Clamp frame with stretching functions in Y for increasing sheet dimension. Maximum mould height up to 2000mm.
Technical data
| Mould size range | |
| X (mm) | min 2500 - max 10000 |
| Y (mm) | 2500 |
| Mould height max (mm) | 1400 |
| Features | |
| Max clamping force | - |
| Sheet loading | manual |
| Part unloading | manual |
| Full machine setup | < 30 min |
| Processes | Vacuum forming |
