Horizontal band saw
t-maxi innovating horizontal band saw permits to separate the thermoformed parts from the basic plate in a fast and accurate way and in full operator’s safety. Its simple design, along with its solid structure makes it a tool you cannot do without, once the thermoforming process is over.
Features
- welded steel supporting frame, rigid monobloc structure
- suction hoods close to the saw and at the exit of the belt to allow the connection of the chips suction system
- the belt is polyurethane-coated, to grant a better grip to the part being cut
- effective and intuitive saw tension and adjustment systems to ensure the quality of the cut. The belt speed can be adjusted
Advantages
-
QUALITY, CUTTING SPEED AND PRODUCTION CAPACITY ALWAYS ON TOP

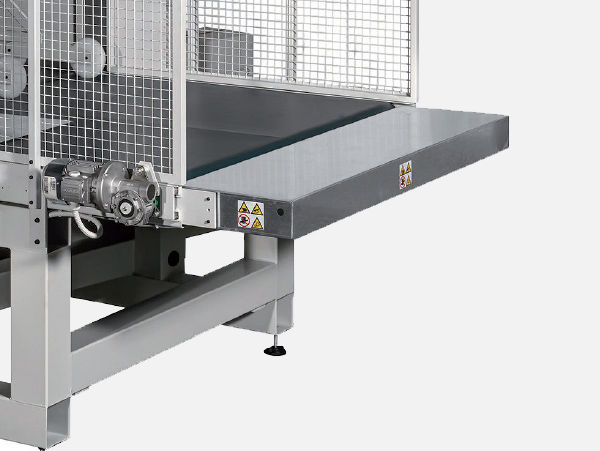

Cutting parameters are ideal in all conditions, with an average saving of 15% in separating the figure from the basic sheet, thanks to the inverter-adjustable belt speed. The electronic adjustment enables finding the ideal cutting speed quickly for any shape, dimension, thickness and material of the thermoformed workpiece. -
MAXIMUM ADHERENCE AND NO SHAPE LIMITS
Maximum adherence between belt and workpiece in all shape conditions.

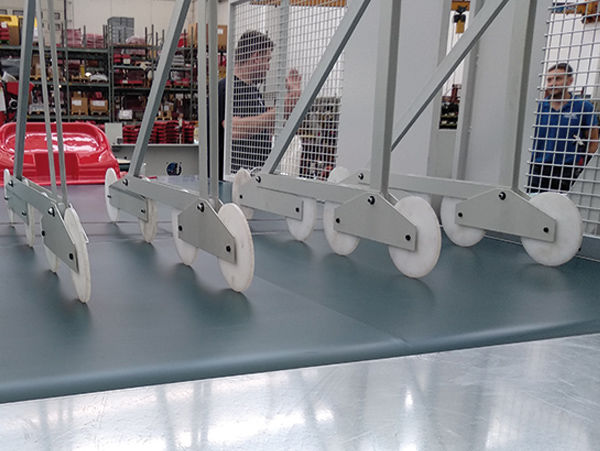

The pressure arms are adjustable and equipped with multiple alternating wheels; they can adapt to the most diversified shapes of the thermoformed workpiece, in both single and multi-imprint mode. -
UNCOMPROMISING SAFETY
Maximum operator safety during the whole machining cycle.

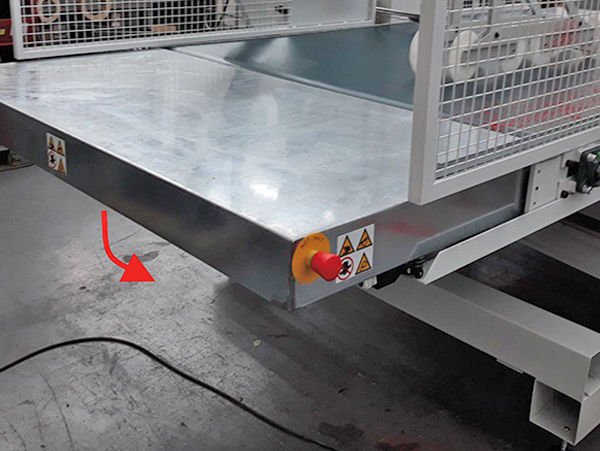

Effortless loading cycles and total safety during all the cutting phases thanks to the “anti-fall” alternating plane. -
BEST CUTTING QUALITY AND EXTENDING BLADE LIFE

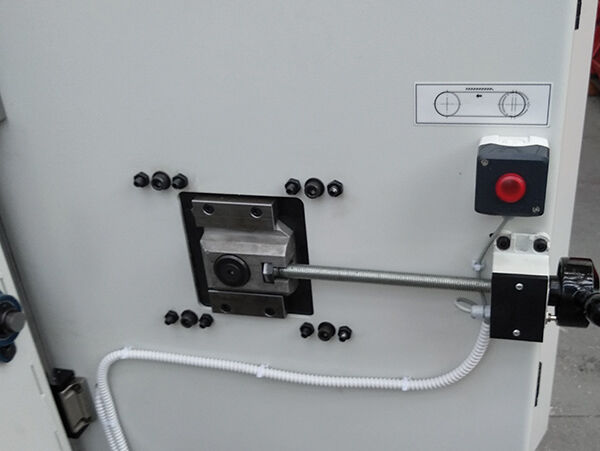

The blade tension-adjusting system is equipped with a light indicator in order to quickly find the ideal working conditions, with a consequent average increase of 15% in the blade life cycle. During blade setting, a special light indicator signals the ideal tension simply and clearly.
Technical data
| Workable dimensions | |
| Passage max. width | from 400 mm to 2100 mm |
| Passage max. heigh piece | 1000 mm |
| Cutting height (min/max) | from 10 mm to 50 mm |
| Max. speed | |
| Band saw | 1200 m/min |
| band | from 1,7 m/min to 8,9 m/min |
