3 and 5-axes hydro-abrasive waterjet cutting system

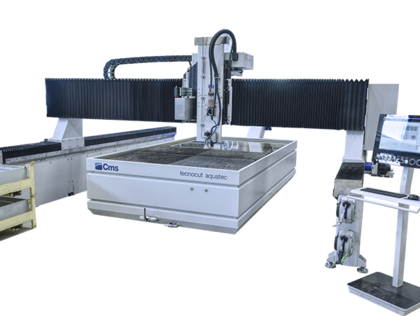

Tecnocut Aquatec is a waterjet system with an advanced, high performing and versatile hydro-abrasive head, capable of meeting the most varied production demands in different fields of application, guaranteeing highly precise cuts. Aquatec was designed along the lines of CMS philosophy: the machine is the result of experience acquired in the automotive, aerospace, naval and design sectors. The structure and technical solutions adopted, together with the selected components, ensure a high level of finishing, high processing speeds, reliability, structural rigidity, flexibility of use and excellent productivity.

  • Excellent configurability designed ad hoc around real customer demands.
  • Mobile gantry load-bearing structure on very thick separate steel shoulders, rests on tracks anchored to the ground, ensuring maximum structural rigidity. This solution guarantees the best finishing even on more complex, difficult processes.
  • The movement, including that of the cutting head, is done on tempered and ground racks activated with brushless motors.
  • The steel casing system and teflon polyurethane bellows, guarantee protection to the moving parts against water and dust from the processing.
  • Thanks to its structure that leaves 2 or 4 sides free on the worktable, sheet loading/unloading is easier as is inspection of the processing material, as well as allowing for the installation of specific equipment to move the pieces.

Advantages

  • PRODUCTION OPTIMIZATION: SMART QUALITY

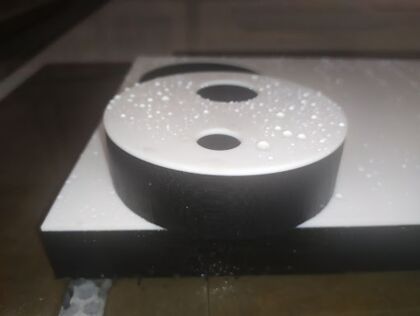

    Parts cut with waterjets do not require subsequent rework and do not generate thermally deformed areas, reducing cycle times and waiting times along the production process.



  • LOWER OPERATING COSTS: SMART VERSATILITY

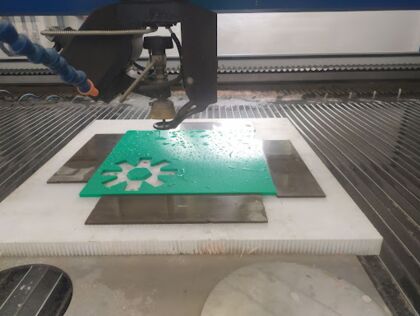

    Waterjet technology offers a unique tool that does not require complex tooling for workpiece clamping. In addition, the 5-axis version can perform 3D cuts with high precision and repeatability.

  • EASY OPERATION: ACCESS TO THE MACHINING BED FROM 4 SIDES

    The structure with wide beam and modular columns allows configurations with ample space around the tank to simplify loading and unloading.

  • LOWER OPERATING COSTS: SMART MAINTENANCE

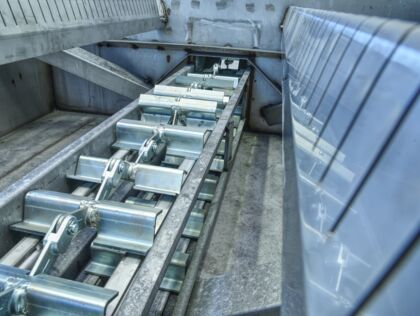

    Waterjet cutting is a clean process that does not generate dust and volatile residues. The collection tank is compatible with the Evo4 dredging system for removal of spent abrasive, which reduces maintenance costs by 90%

Technical data

Model*

 2030 2040 6030 Rapids Accelerations
X Axis 3800 mm / 149 in 4020 mm / 158 in 3000 mm / 118 in 54 m/min 2 m/s2
Y Axis 2650 mm / 104 in 2650 mm / 104 in 6650 mm / 262 in 54 m/min 2 m/s2
Z Axis 650 mm / 25 in 650 mm / 25 in 650 mm / 25 in 12,6 m/min 1 m/s2
B Axis ±60° ±60° ±60° 17299 °/min 1450 °/s2
C Axis infinite infinite infinite 13400 °/min 850 °/s2
Workable area 2000x300 mm / 78x118 in 2000x4000 mm / 78x157 in 6000x3000 mm / 236x118 in
Overall dimensions 5886x4039 mm / 232x159 in without light barriers 5886x4039 mm / 232x159 in without light barriers

8195x6832 mm / 323x269 in

without light barriers



*STANDARD VERSIONS available up to 60120 (12000x6000 mm)

Dynamic precision (3-axis) ± 0,10 mm
Repeatibility of “ps” positioning ± 0,025 mm
