THE SWISS ARMY KNIFE OF CUTTING TABLES

Agil tr is the most compact and versatile cutting table ever made by CMS.

It is a table that can automatically cut monolithic (float) glass sheets and semi-automatically cut laminated glass sheets thanks to the double-zero system.

  • The table is equipped with 4 arms for loading/unloading the sheets and a c-axis to perform both straight and shaped cuts.
  • Easy to install and compact in size, it can cut large sheets up to 3810 mm x 2600 mm.
  • The table can be equipped with an automatic tool change and a low-e coating removal grinding wheel, and a vinyl removal system.

Advantages

    • Automatic tool change: 5-position magazine, installed close to the cutting head. Tool change in 4 seconds [PERFORMANCE]
    • Low-e coating removal speed 40 m/min: 100% automatic removal system with dedicated grinding wheel [PERFORMANCE]
    • Compact and easy to install [COST SAVING]

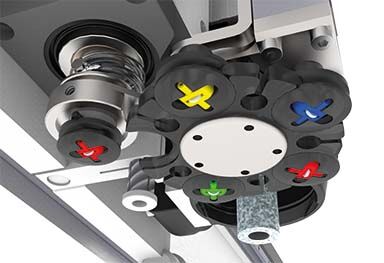

  • Automatic, 5-position tool changer magazine installed close to the cutting head. It guarantees the fastest tool change in its category.

  • Grinding wheel at the front for automatic low-emission (low-e) film removal. 20 mm-wide film strips can be removed at a speed of 40 m/min.

Technical data

Max. workable sheet dimensions 3810 x 2600 mm
Workable sheet thickness 2 - 19 mm
Maximum positioning speed 200 m/min
Maximum acceleration 10 m/s²
Axis positioning accuracy ± 0.15 mm
Straight and shaped cut optimisation software yes
Breakout bars 2+1
Maximum unloadable sheet 350 kg
Working surface height 925 (-25 + 30) mm
Installed power 10 kVA
