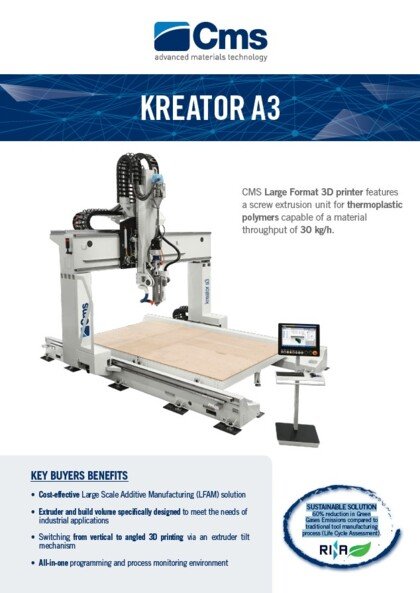

kreator a3
(512) 931-1962
CMS Large Format 3D printer features a screw extrusion unit for thermoplastic polymers capable of a material throughput of 30 kg/h.
KEY BUYERS BENEFITS
• Cost-effective Large Scale Additive Manufacturing (LFAM) solution
• Extruder and build volume specifically designed to meet the needs of industrial applications
• Switching from vertical to angled 3D printing via an extruder tilt mechanism
• All-in-one programming and process monitoring environment
SUSTAINABLE SOLUTION
60% reduction in Green Gases Emissions compared to traditional tool manufacturing process (Life Cycle Assessment)
Technical data
| KREATOR A3 | |
| PROCESS | Additive Manufacturing |
| PRINT STRATEGIES |
VERTICAL /45° / HORIZONTAL by extruder tilting device |
| X AXIS | 2.500 – 9.800 mm |
| Y AXIS | 2.500 mm |
| Z AXIS | 1.300 mm |
| EXTRUDER MAX FLOW RATE | 30 kg/h |
| MAX TEMPERATURE | 450°C |
| NOZZLE SIZES | 10 - 15 mm |
| PRINTING MATERIALS | Thermoplastic polymers, including carbon and glass fiber reinforced PLA, PETG, ABS, PA6, PC, PEI, and many others |
