athena
(512) 931-1962

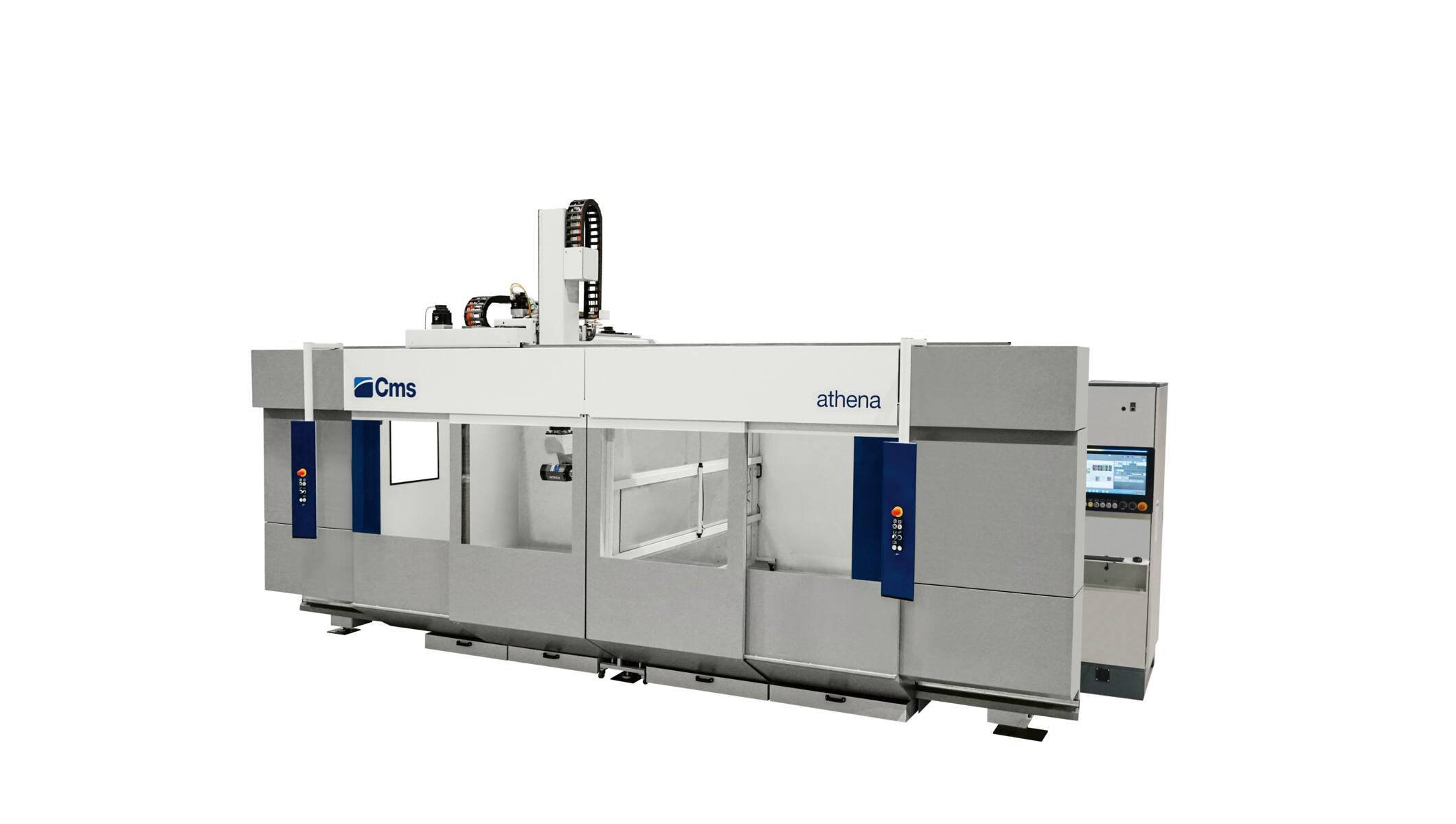

High speed 5-axis CNC machining center
Mobile gantry machining center designed for high speed machining of plastic and composite materials capable of offering exceptional dynamic movement to ensure excellent productivity. In addition to reducing the vibrations generated by machining (thanks to its cross beams) and offering excellent finish quality, the new base structure helps the operator when preparing the work, thanks to:
- Large access area with door opening and closing system based on electric motors, pinion and rack for faster, smoother, more fluid movement
- Possibility of managing the work areas as a single area, or divided in two by a central partition for a much faster machining process
- New "support surface" for jigs, with fine pitch fastening holes to facilitate jig positioning
- Smart4Cut programming system is dedicated to the optimization of the trimming path. Interactive software, a portable keypad with joystick and touch screen provide the operator the ability to easily manage all the CNC functions. Cutting programs canbe created by starting from the 3d model or directly from the sample piece fitted on the machine,automatically eliminating all unnecessary movements and reducing the cycle time to a minimum.
Advantages
-

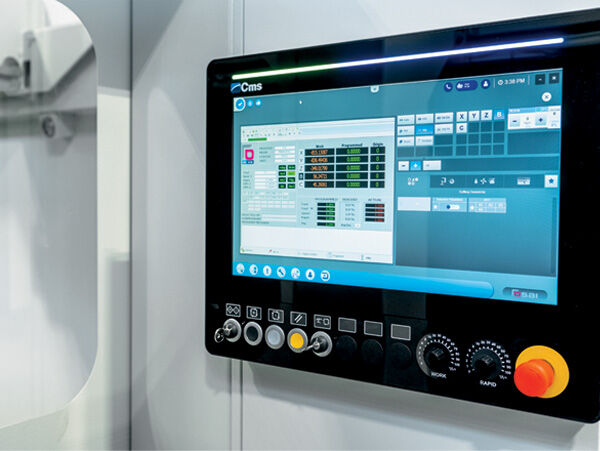

OPERATOR PANEL
PC Panel Console entirely developed internally, with IP53 protection rating and fanless cooling system. 21.5” multi touch screen. Numeric control with option of choosing between CNC OSAI or SIEMENS.
-

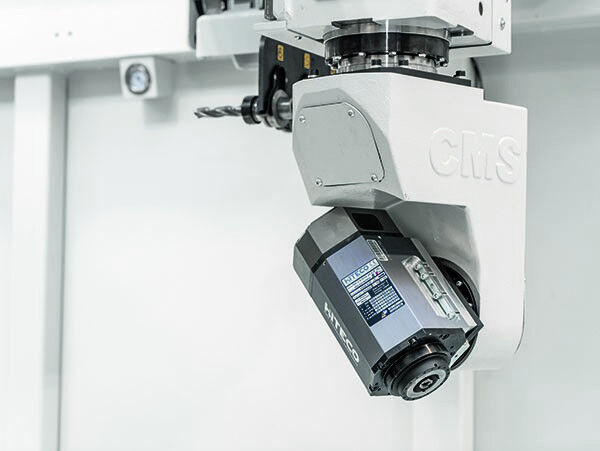

CX5 OPERATING UNIT
Avoids any repositioning operations thanks to the CX5 operating unit, characterized by the the largest rotary XY axis on the market. 15% reduction in cutting times and programming of contouring cuts.
-

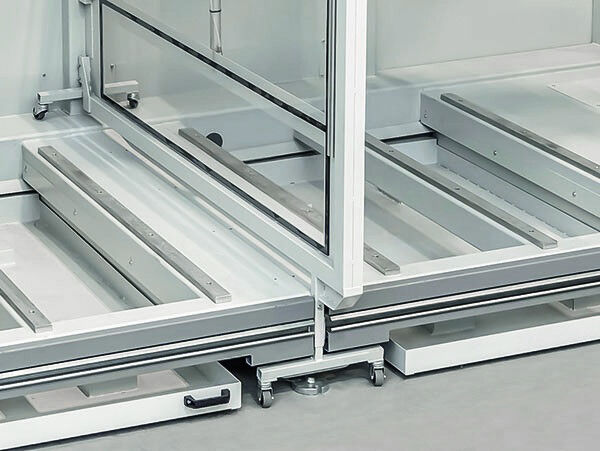

CLEANING OF THE WORK TABLE IN ZERO TIME
Shavings collection system with frontal extraction wheeled tanks. The removable tanks, even with doors closed, are the most ergonomic, functional and rapid solution for keeping the area clean and efficient.
Technical data
| ATHENA: STROKES AND SPEED | ||||||||||
| MODEL | AXES STROKES | RAPIDS | ||||||||
| (mm) | (°) | (m/min) | (°/min) | |||||||
| X | Y | Z | B | C | X | Y | Z | B | C | |
| 2015 | 2200 | 1500 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 3015 | 3200 | 1500 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 4015 | 4200 | 1500 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 5015 | 5200 | 1500 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 3020 | 3200 | 2000 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 4020 | 4200 | 2000 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 5020 | 5200 | 2000 | 900/1200 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| ATHENA APC: STROKES AND SPEED | ||||||||
| MODEL | AXES STROKES | RAPIDS | ||||||
| (mm) | (°) | (m/min) | ||||||
| X | Y | Z | B | C | X | Y | Z | |
| 4025 | 4370 | 2500 | 1200 | ± 120 | ± 370 | 90 | 60 | 40 |
| 5025 | 5370 | 2500 | 1200 | ± 120 | ± 370 | 90 | 60 | 40 |
| ATHENA TR: STROKES AND SPEED | ||||||||||
| MODEL | AXES STROKES | RAPIDS | ||||||||
| (mm) | (°) | (m/min) | (°/min) | |||||||
| X | Y | Z | B | C | X | Y | Z | B | C | |
| 2015 | 2200 | 1500 | 900 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 3015 | 3200 | 1500 | 900 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| 4020 | 4200 | 2000 | 900 | ± 120 | ± 370 | 90 | 90 | 60 | 14000 | |
| WORKING UNITS AND ELECTROSPINDLES | ||||||
| MODEL | NOMINAL POWER (S1) | MAX POWER (S6) | MAX RPM | TORQUE (S1) | TOOL HOLDER | COOLING |
| CX5 | 8,5 kW | 10 kW | 24000 rpm | 6,8 Nm | HSK 63F | Liquid |
| CX5 10 | 10 kW | 12 kW | 24000 rpm | 8 Nm | HSK 63F | Liquid |
| CX5 8 | 8 kW | 9 kW | 40000 rpm | 5,2 Nm | HSK 32E | Liquid |
