CMS Advanced Materials Technology, CNC machining centers for fabricating with plastics, composites and aluminum
CMS Advanced Materials Technology business unit is an industry leader in designing numerically controlled machining centers for fabricating with advanced materials such as composites, carbon fiber, aluminum, light alloys, plastics and metals.
Substantial investments in research and development have allowed the brand to always be on the forefront of cutting-edge design, with machines that ensure best-in-class performance in terms of accuracy, execution speed and reliability to meet the needs of customers operating in the most demanding sectors.
Since the early 2000’s, CMS Advanced Materials Technology has established itself as a technology partner in areas of excellence such as aerospace, aviation, automotive, racing boats, Formula 1, and the most advanced railway industry.
In particular, the business unit provides customers with 3- and 5-axis CNC machining centers for drilling and milling, machines for Large Format Additive Manufacturing and systems with water-jet cutting technology.
In this article, we will examine the essential characteristics of some of these machines, focusing on CNC machining centers with Z axes up to 500mm
3-5 axis CNC machining centers
CMS “all-in-one” machining centers for fabricating with composites, aluminum and plastics are based on a CMS technology core, are available in 3- and 5-axis versions, and are equipped with fully state-of-the-art solutions. These machines have Z clearances of up to 500 mm, and offer everything needed to meet the most diverse needs: from nesting engineering components to cutting low-drawing thermoformed parts, while guaranteeing maximum precision without compromise.
The machine has a robust and compact structure to ensure high reliability and constant long-term performance, even in the most demanding applications.
General characteristics of CMS CNC machining centers
All CNC machining centers made by CMS Advanced Materials Technology are designed with innovative benefits to fully meet customers’ needs.
Cutting performance optimized for composites and plastics
Specifically designed operating units ensure that these machines achieve exceptional performance levels. Complete absence of vibration during material removal and high-speed trimming ensures impeccable results and high-quality finishes.
Fabrication convenience and speed
On average, work cycles are faster compared to other machines in the same category, thanks to the tool magazines and rack built into the mobile cabins. The tools are always at the front relative to the operating unit, allowing extremely fast tool changes to maximize production efficiency.
Small footprint and optimized access
The “pro-space” guards were designed to free the loading areas completely, while minimizing the machine footprint. The absence of perimeter guards means the worktable can be accessed from all sides, improving operational convenience and reducing space occupation in the factory by 15%. A smart solution that combines compactness and maximum freedom of movement.
CMS Advanced Materials Technology machines with Z axis up to 500 mm
Let us take a closer look at some of the models offered by CMS for various types of company and, consequently, for different operational needs.

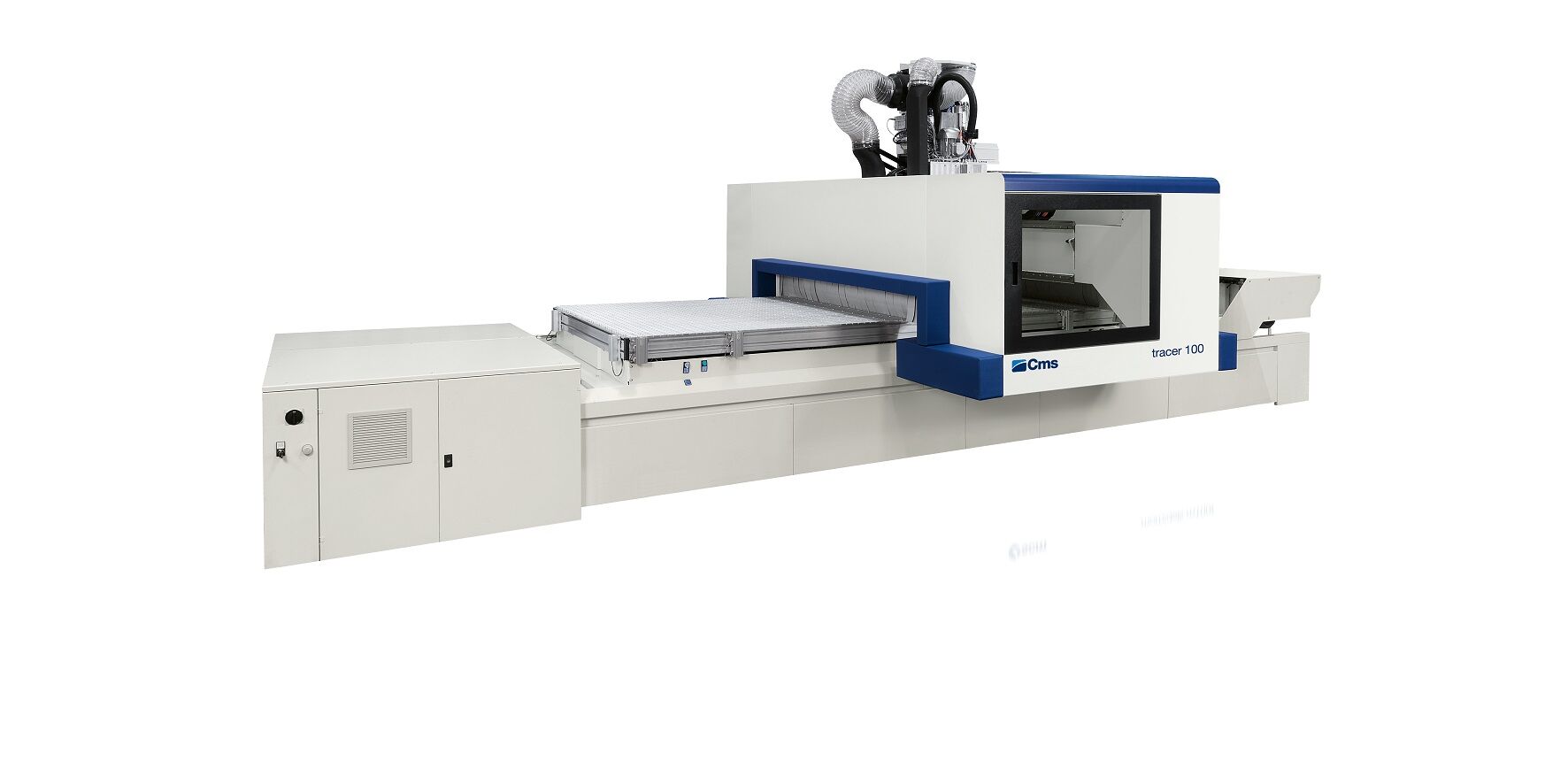

Tracer 100
Tracer 100 is an “all-in-one” machining center, available in 3- and 5-axis versions. It is designed for fabricating with advanced materials and plastics, using specific technical solutions for the engineering and low-drawing thermoformed parts sectors.
It offers a generous Z clearance for workpieces up to 250 mm, and a range of top-class spindles suitable for all machining needs, with powers up to 15 kW and speeds of 24,000 rpm.
The "Pro-Speed" and "Pro-Space" solutions ensure unparalleled space optimization.
Benefits
Perfect for fabricating with plastic
The JQX 5-axis operating unit is optimized for plastics and ensures maximum vibration-free performance during material removal and high-speed trimming on thermoformed parts.
Execution speed
Work cycles are 9% faster with the 14-position FAST tool magazine built into the mobile cabin. The tools are always accessible at the front, with quick changes in less than 15 seconds.
Flexibility and strength

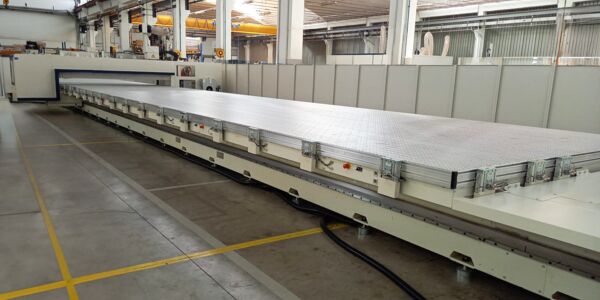

The multifunction extruded aluminum worktable offers versatile clamping solutions for slab nesting processes and thermoformed parts. Designed to maintain long-term flatness, it guarantees constant reliability and performance, even under repeated stress.
Extremely compact
Tracer 100 offers "pro-space" guards to free the loading area and reduce the footprint.

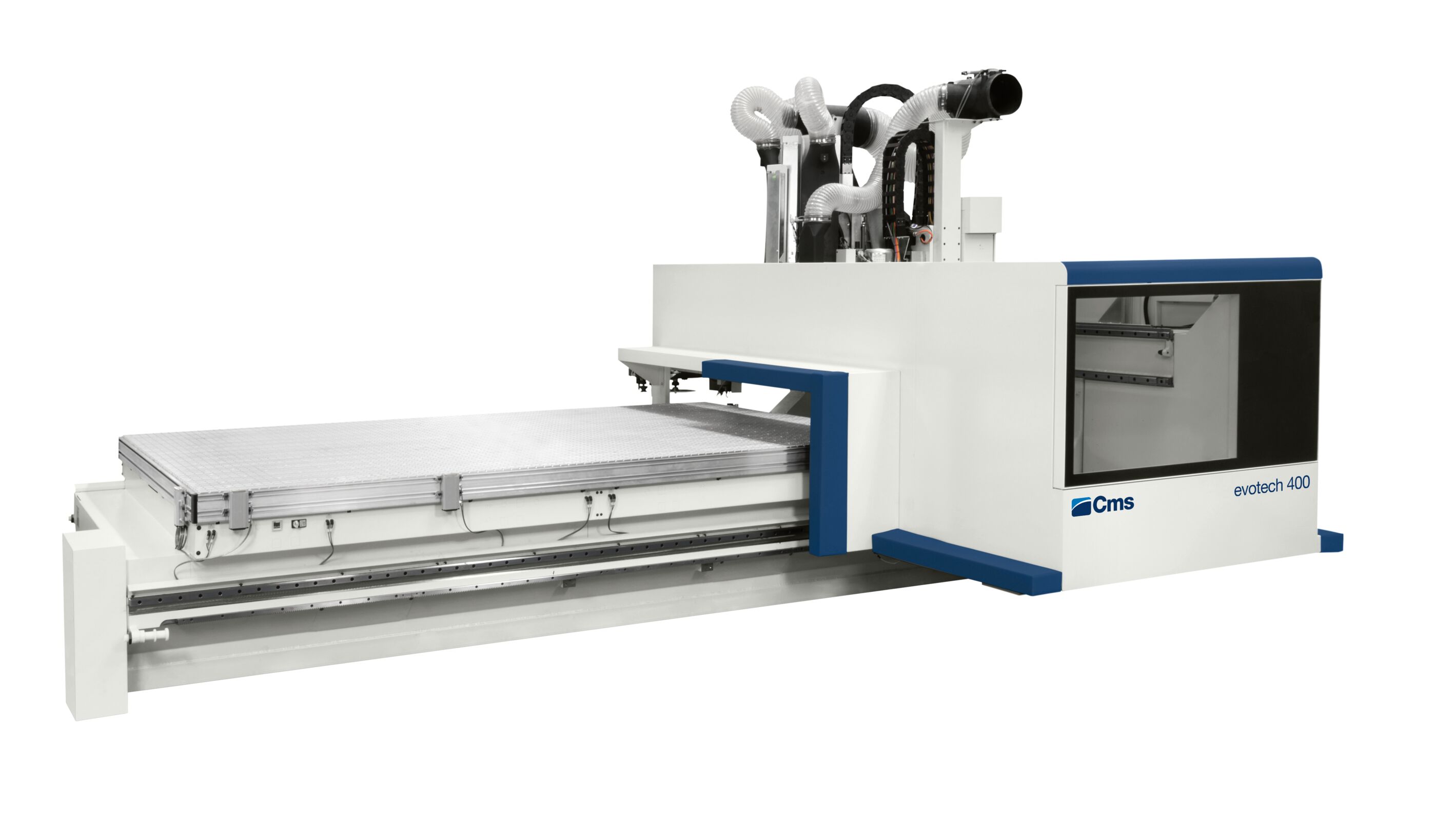

Evotech
Evotech offers 3- or 5-axis machining centers with mobile gantry structures, specially designed for fabricating with materials that have rigid, stable structures, such as advanced materials and plastics.
With powers of up to 15 kW and speeds of 24,000 rpm, the spindles guarantee exceptional material removal capacity and precision levels, combined with the highest quality finishes under all conditions.
The gantry structure is driven by dual motors with high dynamics, an ideal solution for fabricating with advanced materials and plastics.
Benefits
Operating speed
Roughing cycles are 7% faster and comply with the strictest finishing tolerances. The fixed worktable and mobile gantry architecture with dual drive motors and precision guides ensures effective heavy-duty material removal and impeccable finishes throughout the work area.
Flexibility and secure slab clamping
A built-in vacuum system and “T” slots for optimal slab clamping and positioning of mechanical tooling. The multifunction aluminum worktable maintains perfect long-term flatness, ensuring machining tolerances are always under control.
Fabrication with slabs up to 500 mm high
The high workpiece clearance and Z-axis stroke offer versatile and precise fabrication with workpieces up to 500 mm high. It is the ideal cutting solution for engineering parts and plastic prototypes.
5-axis power
The option of using PRISMA interpolating 5-axis operating units combine power, precision and versatility, making it ideal for producing high-performance resin engineering components.
Additional pros: continuous customer support and CMS Digital System
CMS supports its customers throughout the production process by integrating machinery with software solutions and digital services, while focusing on improving performance with the aim of optimizing company productivity.
CMS software solutions are designed exclusively for these machines, and can be integrated perfectly with existing software systems in the company.
The aim is to facilitate machine use as much as possible and optimize the entire production process of any company.
